DIAGNOSTIC TOOLS

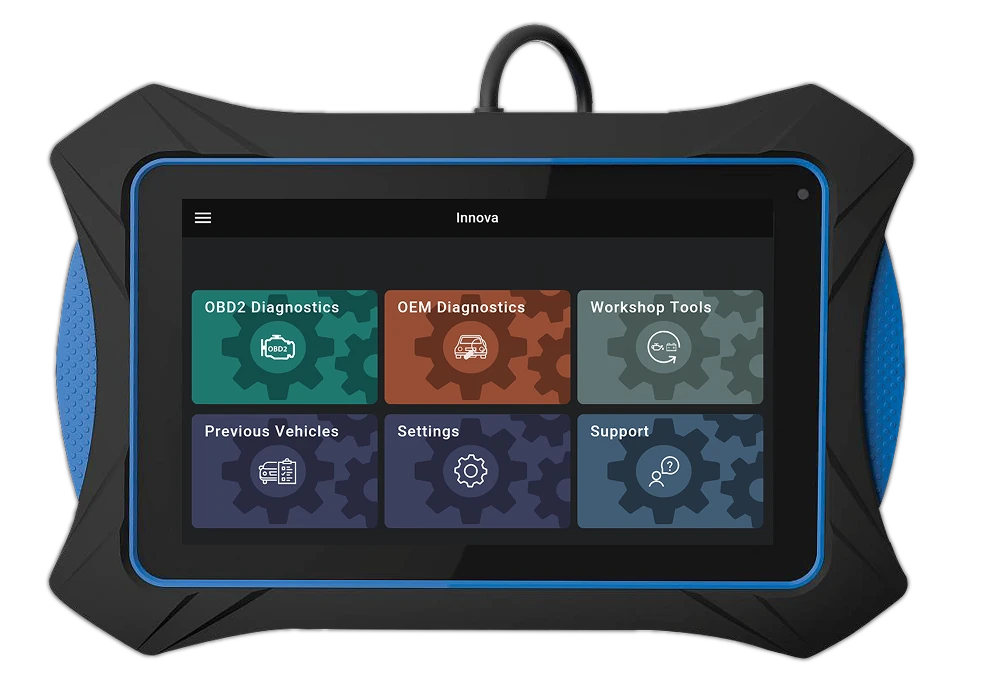

Innova 7111 | Smart Diagnostic System
| OE-Level Diagnostic

Powered* by RepairSolutionsPRO™

*No App Download Required

MOTOR Top 20 Award 2021

Key Features
  • OEM Diagnostics
  • Bi-Directional/Active Tests
  • Special Functions
  • Service Check & Warning Light
  • 34+ Workshop Tools
  • Secure Gateway Unlock
Find In Store

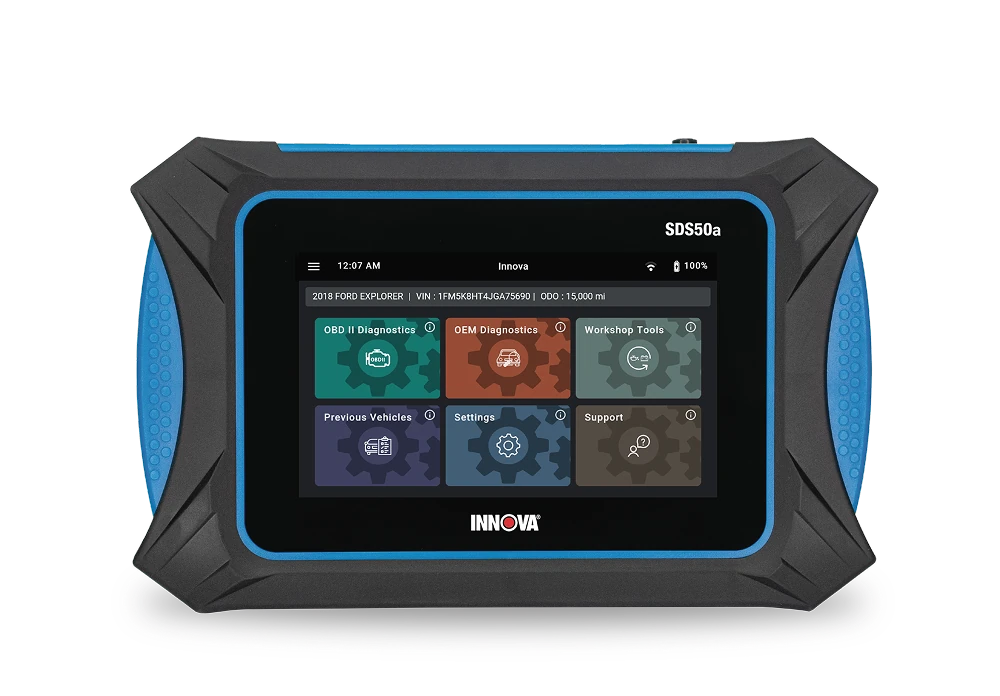

SDS50 | SDS Tech | OE-Level
Diagnostic

Compatible with RepairSolutionsPRO™

MOTOR Top 20 Award 2023

2023 Pro Tool Innovation Award

Key Features
  • OEM Diagnostics
  • Bi-Directional/Active Tests
  • Special Functions
  • Service Check & Warning Light
  • 16 Workshop Tools
  • 5" Touch screen Display
Find In Store

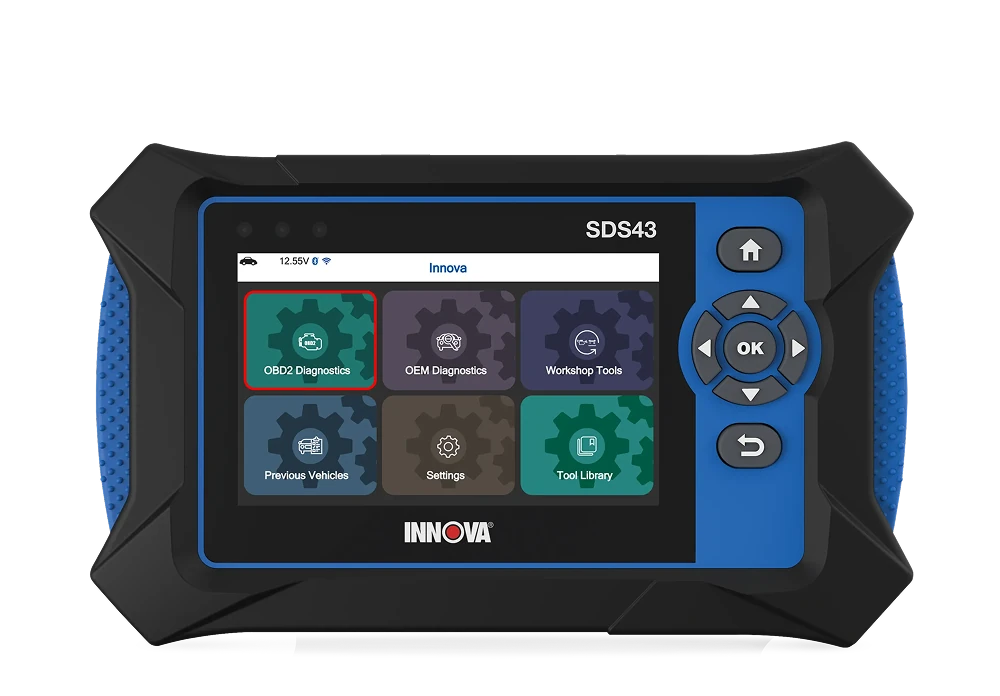

SDS43 | SDS Inspector | OE-Level
Diagnostic

Compatible with RepairSolutionsPRO™

2023 Pro Tool Innovation Award

Key Features
  • OEM Diagnostics
  • Bi-Directional/Active Tests
  • Special Functions for ECM/PCM, TCM
  • Service Check & Warning Light
  • 12 Workshop Tools
  • Multiple Report Types
Find In Store

DS200: Wireless Intelligent Tester

Pairs with Innova 7111
Key Features
  • 2 Channel Graphing Digital Multimeter
  • Pairs with 7111 Scan Tool
  • Measures AC/DC voltage, AC/DC Current and Resistance (ohms)
  • CAT III 600V
  •

Innova 7111 | Smart Diagnostic System | OE-Level Diagnostic

Powered* by RepairSolutionsPRO™

*No App Download Required

MOTOR Top 20 Award 2021

Key Features
  • OEM Diagnostics
  • Bi-Directional/Active Tests
  • Special Functions
  • Service Check & Warning Light
  • 34+ Workshop Tools
  • Secure Gateway Unlock

Product Details

Find In Store

Buy Now

SDS50 | SDS Tech | OE-Level Diagnostic

Compatible with RepairSolutionsPRO™

MOTOR Top 20 Award 2023

2023 Pro Tool Innovation Award

Key Features
  • OEM Diagnostics
  • Bi-Directional/Active Tests
  • Special Functions
  • Service Check & Warning Light
  • 16 Workshop Tools
  • 5" Touch screen Display

Product Details

Find In Store

Buy Now

SDS43 | SDS Inspector | OE-Level Diagnostic

Compatible with RepairSolutionsPRO™

2023 Pro Tool Innovation Award

Key Features
  • OEM Diagnostics
  • Bi-Directional/Active Tests
  • Special Functions for ECM/PCM, TCM
  • Service Check & Warning Light
  • 12 Workshop Tools
  • Multiple Report Types

Product Details

Find In Store

Buy Now

DS200: Wireless Intelligent Tester

Pairs with Innova 7111

Key Features
  • 2 Channel Graphing Digital Multimeter
  • Pairs with 7111 Scan Tool
  • Measures AC/DC voltage, AC/DC Current and Resistance (ohms)
  • CAT III 600V

Product Details

COMPARE DIAGNOSTIC PRODUCTS

Hardware Specifications
SDS43
SDS50
7111
Compatible with RepairSolutionsPRO™
Screen Size 4.3” 5.0” 7.0”
Operating System Bare Mental (Non OS) RTOS Android 9.0
Battery Rechargeable (4800mAh) Rechargeable (6100mAh)
Cable Detached - 25 Detached HDMI - 25 Detached VCI - 25
Pin Count 16 16 16
Keypad 7 N/A, Touch Screen N/A, Touch Screen
ASIC Chip
Bluetooth and WiFi
Functions
Workshop Tools (Resets, Relearns, etc)
Workshop tools

Quick and easy access to the most popular routines, self-tests and calibrations used for service and repairs. including: Oil Maintenance Reset, Battery Reset, Electronic Parking Brake Reset, Steering Angle Sensor (SAS) Reset, Anti-Lock Braking System Bleeding, Battery/Alternator Test, and EV/HEV/PHEV Battery Health, and etc.

 12 Services 16 Services 34 Services
Active Tests (ECM, TCM, PCM)
Active Tests

Enable and disable actuators, relays and components for the Engine Control Module, Transmission Control Module and Powertrain Control Module.

 7 Brands 10 Brands 16 Brands
Special Functions (ECM, TCM, PCM)
Special Functions

Perform dealership level routines, self-tests and calibrations for diagnosis, service, and repairs for the Engine Control Module, Transmission Control Module and Powertrain Control Module.

 7 Brands 10 Brands 16 Brands
OEM Live Data All Systems
OEM Live Data All Systems

View, graph, record, and playback live data for All systems.
Reads & Clears All Systems Codes
Reads & Clears All Systems Codes

Read and Clear OEM level diagnostic trouble codes (DTC) for all systems.
OEM ECU Info (SID#22 & 1A)
OEM ECU Info

Retrieves and displays the specific information for the tested control unit, including Protocol, ECU ID, version number and other specifications.
Reads & Clears OBD2 Codes
Reads & Clears OBD2 Codes

Read and Clear diagnostic trouble codes (DTC) using OBD2 mode.
Emission/SMOG Check Readiness
Emission/SMOG Check Readiness

Readiness monitors indicate when the vehicle’s computer has performed a self-test of the emissions control system, determining whether it is functioning correctly.
Covers All 10 OBD Modes
Covers All 10 OBD Modes

Access and utilize all 10 diagnostic modes defined by the OBD2 standard. This allows for comprehensive vehicle diagnostics, including: reading current data, retrieving and clearing trouble codes, monitoring system tests, and more.

Trip Cycles for SMOG/Emissions Check
Trip Cycles for SMOG/Emissions Check

View trip cycle procedures that instructs how to drive the vehicle in such a manner to meet the required “Enabling Criteria” to run and complete its diagnostic testing.
Battery/Charging System Test
Battery/Charging System Test

Performs a check of the vehicle’s battery and alternator system to ensure the system is operating within acceptable limits.
BMS/Battery Reset & Initialization
BMS/Battery Reset & Initialization

Use the BMS/Battery Reset function to activate/initialize the electrical system following battery disconnection/reconnection.
Use the Battery Initialization function after battery replacement to reset the battery change counter or initialize the information from the new battery.
Reads Hybrid Battery Cells Voltage
Reads Hybrid Battery Cells Voltage

Inspect the high-voltage battery pack in a hybrid or electric vehicle. This test displays parameter-related metrics for HEV/EV battery pack. For some vehicles, it is able to display the individual battery block voltage of the HEV/EV battery pack in a form of a chart for easy comparison.
Reads Tire Pressure/Tire Pressure Status
Reads Tire Pressure/Tire Pressure Status

Provides real-time information on tire pressure and status, which mechanics or diagnostic technicians can use during vehicle inspections.
FCA Security Gate Way
FCA Security Gate Way

Repair centers and/or individual technicians that register for AutoAuth access will unlock FCA Secure Gateway (SGW)-protected vehicles that are model year 2018 or newer. Without vehicle network access on Alfa Romeo, Chrysler, Dodge, Fiat, Jeep, and RAM vehicles diagnostic network access is limited including the ability to erase DTCs, perform special OEM functions and active tests as well as resets, relearns, routines, and calibrations, according to Innova.
Fixes and Repair Tips
Fixes and Repair Tips

View a fix, which is cross-referenced for accuracy against a database of millions of verified fixes. It is real-world data that has been collected for over 25 years by Innova’s network of ASE Master Technicians across the U.S.
View Repair Tip additional insight and helpful tips to resolve the issue.
Warnning Light Indicator
Warnning Light Indicator

Examine the detailed information concerning the Warning Light Indicator, which includes the ABS, SRS, and TPMS Warning light, which mechanics or diagnostic technicians can use during vehicle inspections.

 ABS, SRS ABS, SRS, TPMS ABS, SRS, TPMS
Service Checks (Oil Level, Oil Life, etc)
Service Checks

Examine the detailed information concerning the Service Checks, which includes the Oil Level, Oil Life, Transmission Temperature, Brake Pad Life, and Engine Coolant Level, which are often used during vehicle inspections.

 Except Engine Coolant Level Except Engine Coolant Level
Active Tests (Most popular systems)
Active Tests

Enable and disable actuators, relays and components for several of the most popular systems.
Special Functions (Most popular systems)
Special Functions

Perform dealership level routines, self-tests and calibrations for diagnosis, service, and repairs for several of the most popular systems.
