Introduction
Description: This article gives access to a step-by-step guide on how to Scan All Systems utilizing the INNOVA® SDS50: Android Tablet Smart Diagnostic System.
Benefits: As the automotive industry continues to expand, the utilization and quantity of control modules are increasing. Consequently, identifying and fixing malfunctions in their functioning, encompassing mechanical and electrical problems, is becoming more challenging. To tackle this issue, a Scan Tool is essential to establish communication with our vehicles and retrieve their Diagnostic Trouble Codes (DTCs). This becomes particularly important when the Malfunction Indicator Lamp (MIL) on the dashboard is illuminated.
Instructions

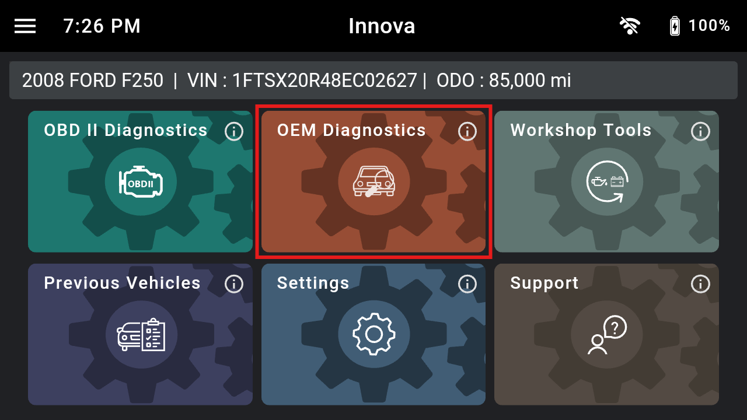

Step 1: Connect the Innova SDS50 to the vehicle via the 16-pin Data Link Connector (DLC). Wait a moment for the AUTO-LINK process to be completed. After retrieving, the Innova SDS50 gets general information such as VIN, vehicle information, and odometer. Next, select the OEM Diagnostics section.

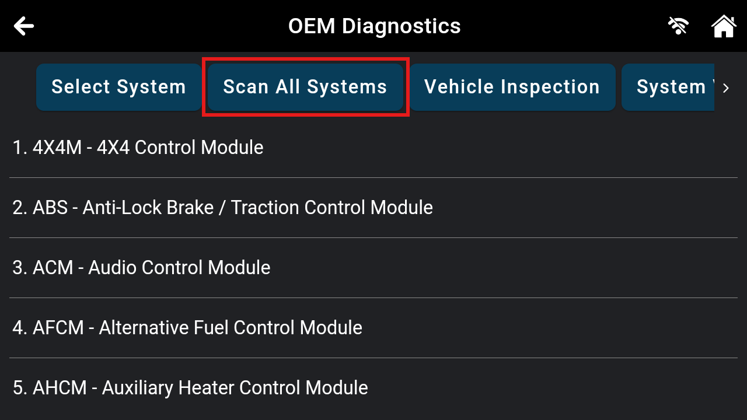

Step 2: Based on the vehicle information, the Innova SDS50 shows you the list of systems supported in this vehicle. Next, find and select the Scan All Systems button. After retrieving data from the vehicle, the Innova SDS50 shows a list of systems with the health status.
NOTE: The system name might be different from vehicle to vehicle.
NOTE: The systems with faulty codes will appear first, while systems without fault codes or that do not respond will be displayed last.
Step 3: Select the desired system to check the DTCs.

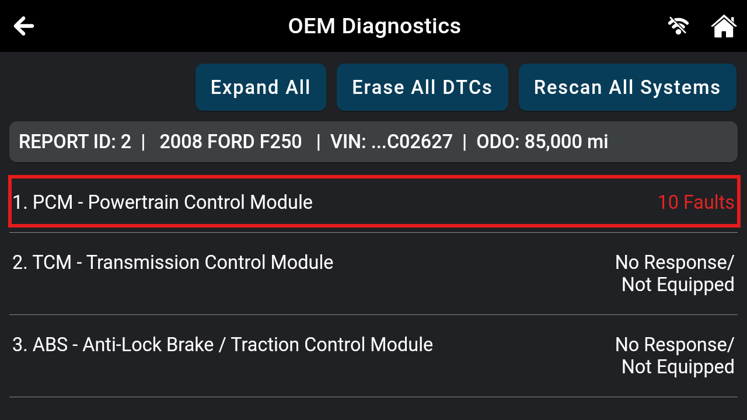

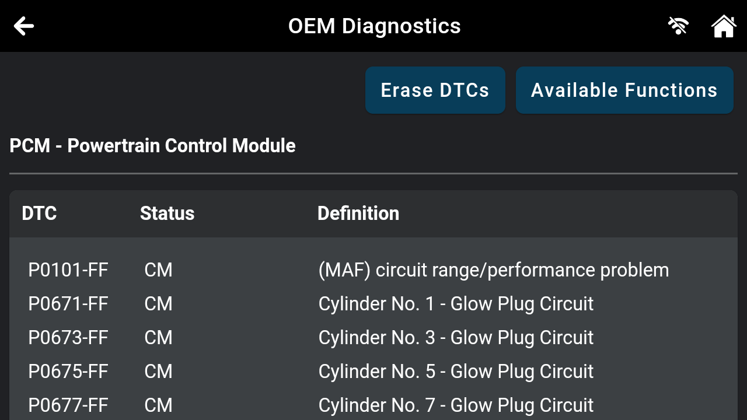

On the scanning results screen, tap a specific module for more detailed information in regard to system faults, including DTCs status and definition.

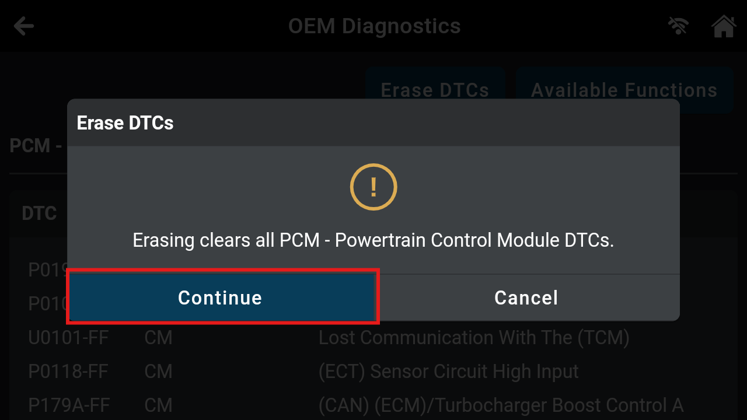

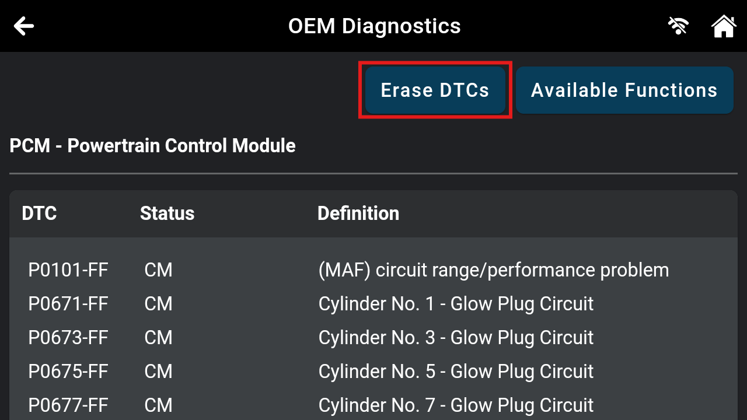

Step 4: Once you have resolved all the DTCs of the vehicle, tap the Erase DTCs and Continue button to erase the codes and turn OFF the MIL or warning light illuminated on the dashboard.

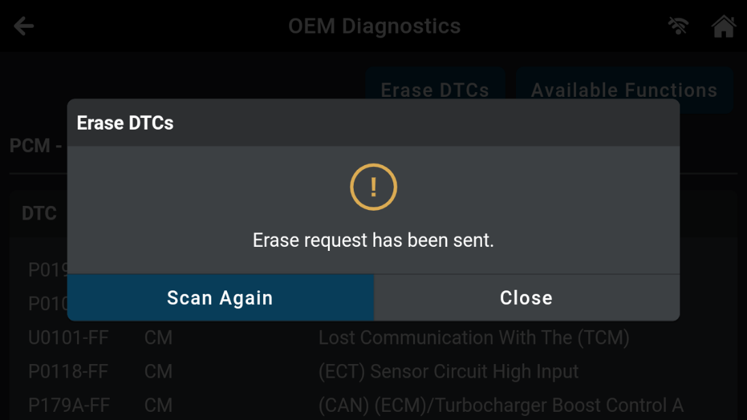

The Scan Tool will automatically send the clearing request. Afterward, all systems must be appropriately scanned again to confirm that there are no DTCs present in the vehicle.
Reference Video
This article applies to Firmware version 24.05.04
