Introduction

Description: Original Equipment Manufacturer (OEM) Trouble Codes are manufacturer-specific Diagnostic Trouble Codes (DTCs) created to identify issues within a vehicle's systems. When a fault is detected, these codes trigger the Malfunction Indicator Light (MIL). The Innova SDS43 can read these codes and clear them after the necessary repairs are completed.

Benefits: With support for OEM Trouble Codes, the Innova SDS43 allows technicians to diagnose manufacturer-specific problems accurately and clear codes post-repair, ensuring the vehicle’s systems return to normal operation.

Instructions

This procedure is carried out on a 2015 Chevrolet Equinox L4, 2.4L (VIN 8th = K)

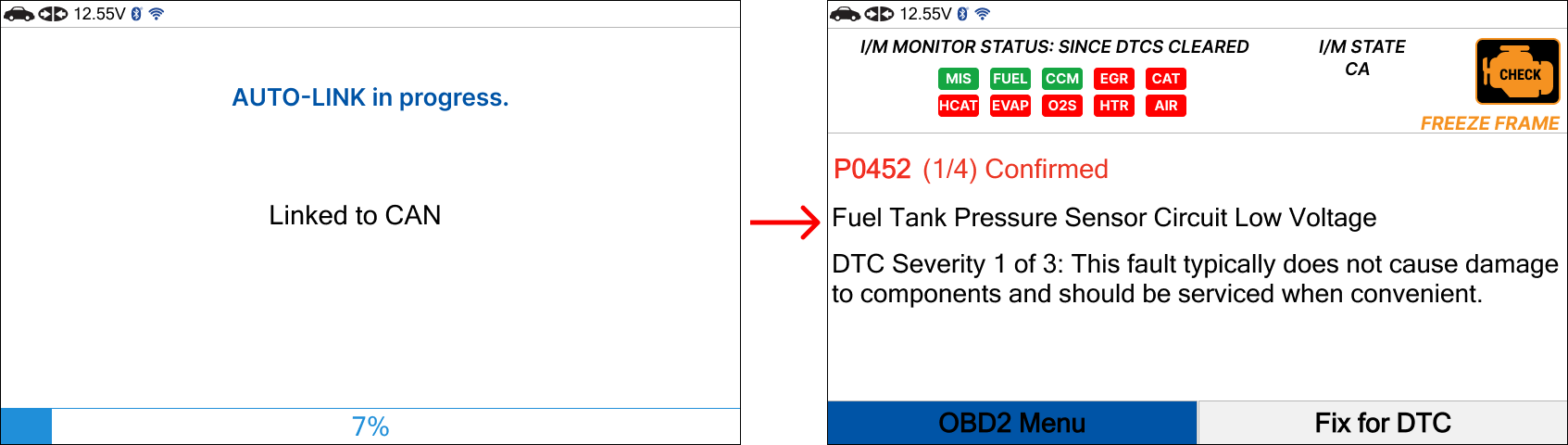

Step 1: Connect the Innova SDS43 to the vehicle via the 16-pin Data Link Connector (DLC). Allow the AUTO-LINK process to complete. Once finished, the Read DTCs screen will appear. Press the Home button.

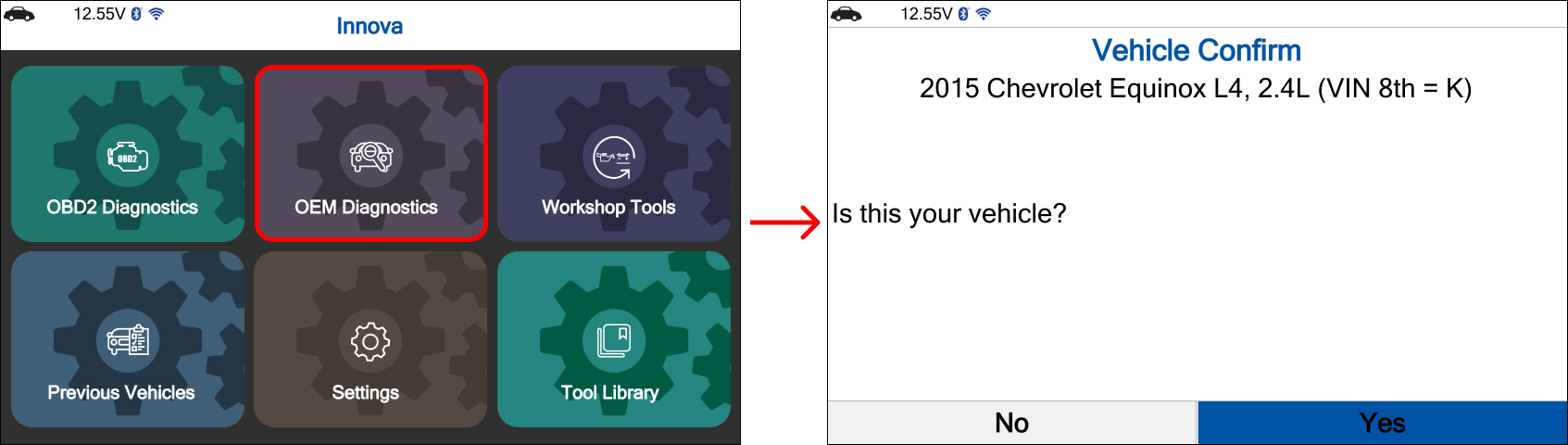

Step 2: Use the navigation button to select the OEM Diagnostics tab, then press the OK button. The Vehicle Confirmation screen will appear.

• If the displayed information is correct, select Yes.

• If the information is incorrect, select No and manually enter the vehicle details.

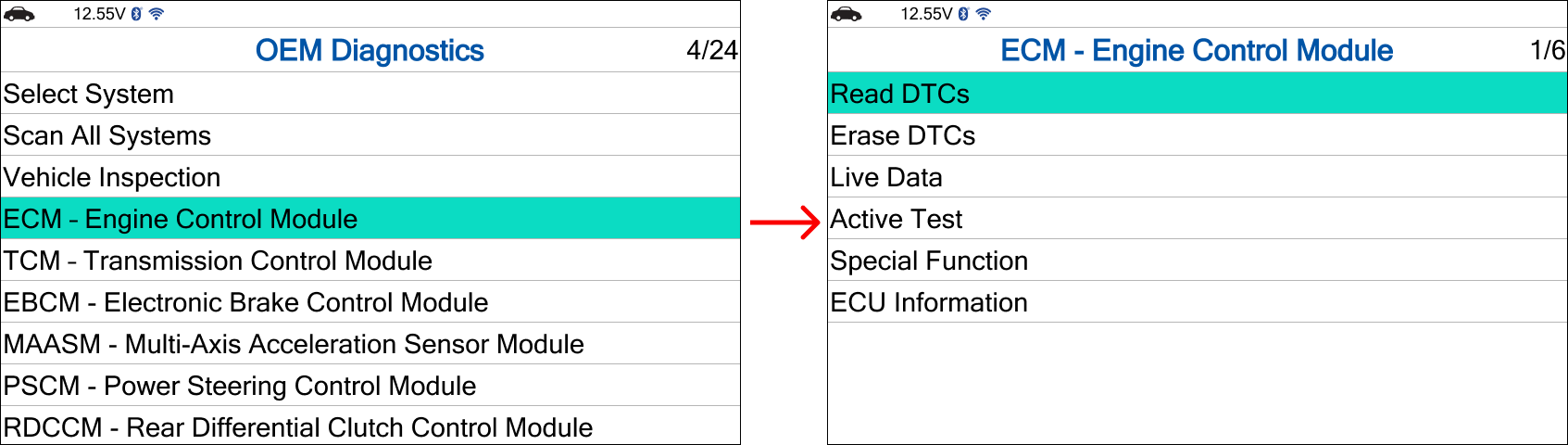

Step 3: Select the desired system, then press the OK button. Next, select Read DTCs and press the OK button again.

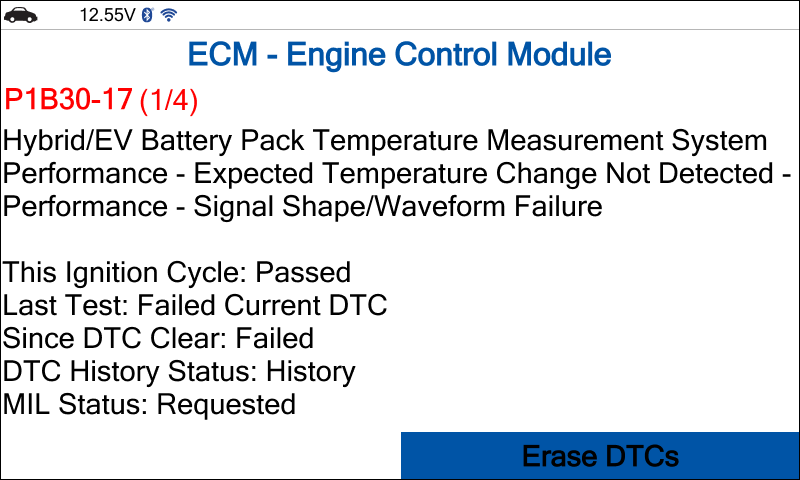

Step 4: The OEM DTCs of the selected system will be displayed. Use the navigation button to view any other DTCs. Select Erase DTCs and press the OK button to clear the DTCs.

Step 5: When the confirmation screen appears, press the OK button to complete the process.

Reference Video

This article applies to Firmware version 23.07.23 and App version 02.15.01
