Innova SDS50 - How to Unlock the Secure Gateway (SGW)

Introduction

Description: The Innova SDS50 – Smart Diagnostic System supports diagnostics for most vehicles, including those with Secure Gateway (SGW) modules found in newer models. The SGW is a firewall that protects the vehicle's network from unauthorized access. The SGW module blocks some functions, including:

  • Erasing Original Equipment Manufacturer (OEM) Diagnostic Trouble Codes (DTCs).

  • Running OEM Special Functions or Active Tests.

  • Using Workshop Tools (Resets, Relearns, Routines, Calibrations).

Benefits: Unlocking the SGW allows technicians to perform comprehensive diagnostics and access essential features for more accurate vehicle maintenance and repair, ensuring smoother workflows and better service for customers.

Preparation

Ensure that the RSPRO® App is installed, and an account is registered on your smartphone or tablet. If it is not installed, download it from:

Refer to the guide for downloading and registering an RSPRO® account.

Instructions

Note: This procedure performs an Oil Maintenance Reset on a 2019 RAM 1500 V8, 5.7L.

Note: Ensure that your Innova SDS50 is running firmware V23.02.01 or later. If not, refer to the guide for updating.

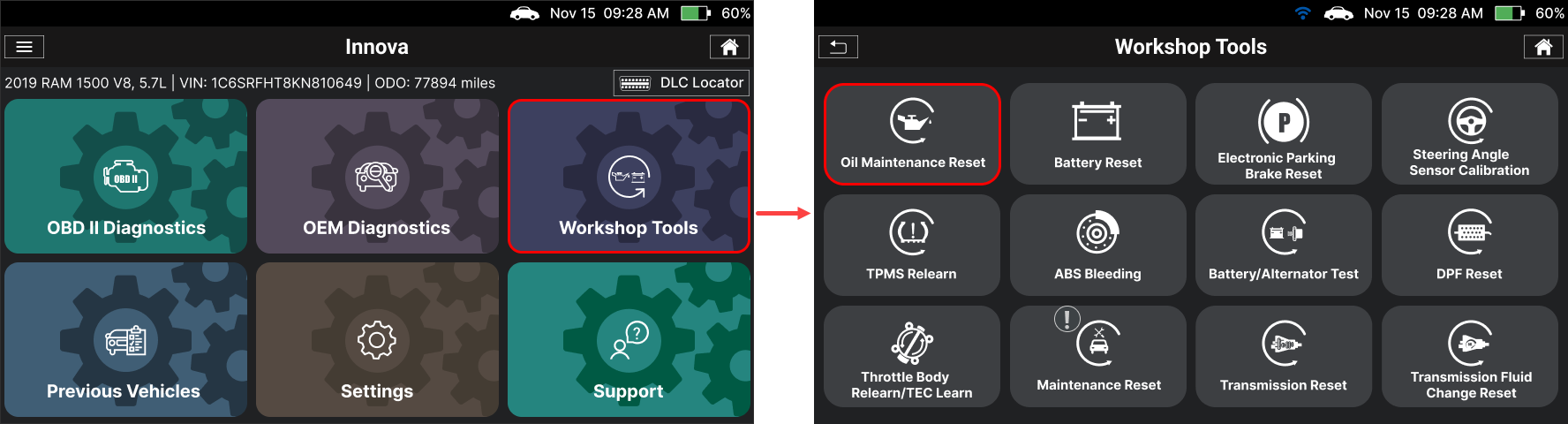

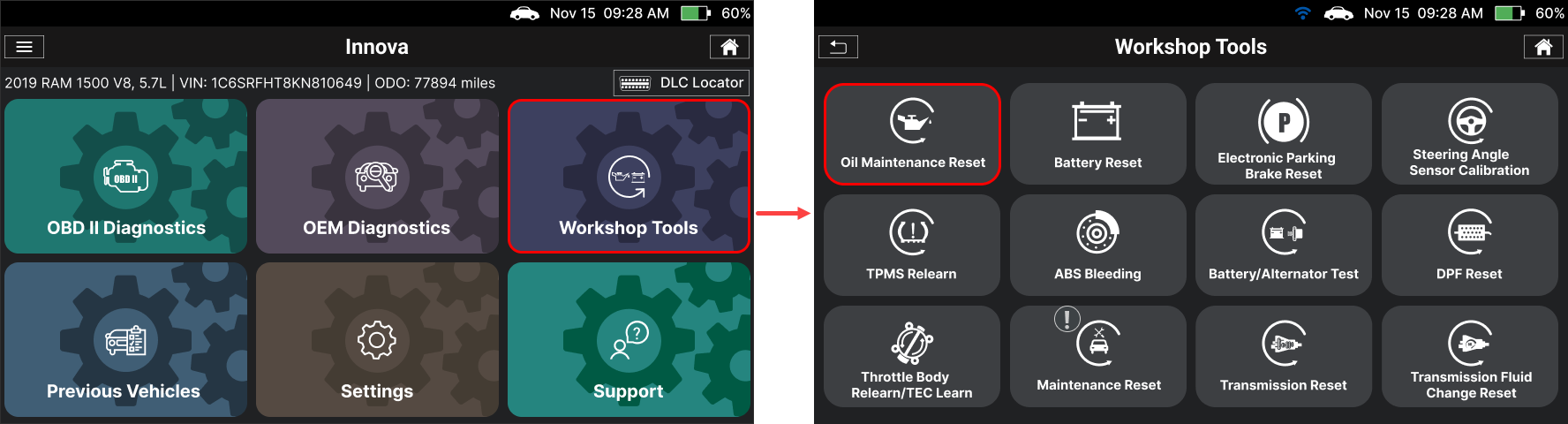

Step 1: In the home menu, tap the Workshop Tools tab, then tap the Oil Maintenance Reset tab.

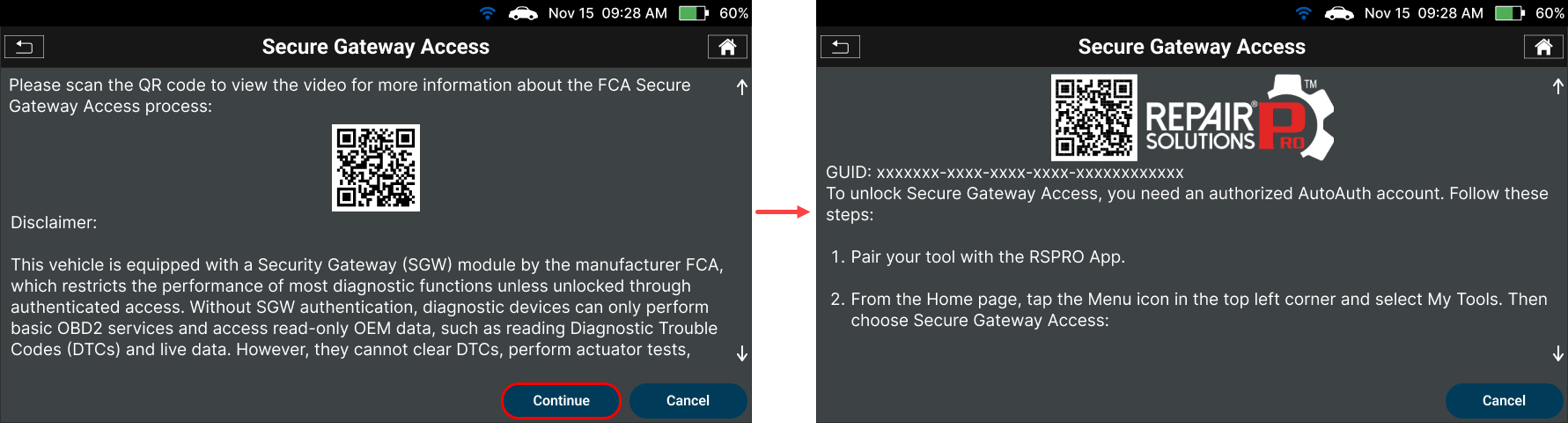

Step 2: The Innova SDS50 will show a screen with a QR code for SGW unlocking instructions. Tap the Continue button, the Innova SDS50 will show instructions to open the RSPRO® App to unlock the SGW.

Step 3: Pair your Innova SDS50 with the RSPRO® App (refer to the guide for pairing).

A. Register an authorized AutoAuth account

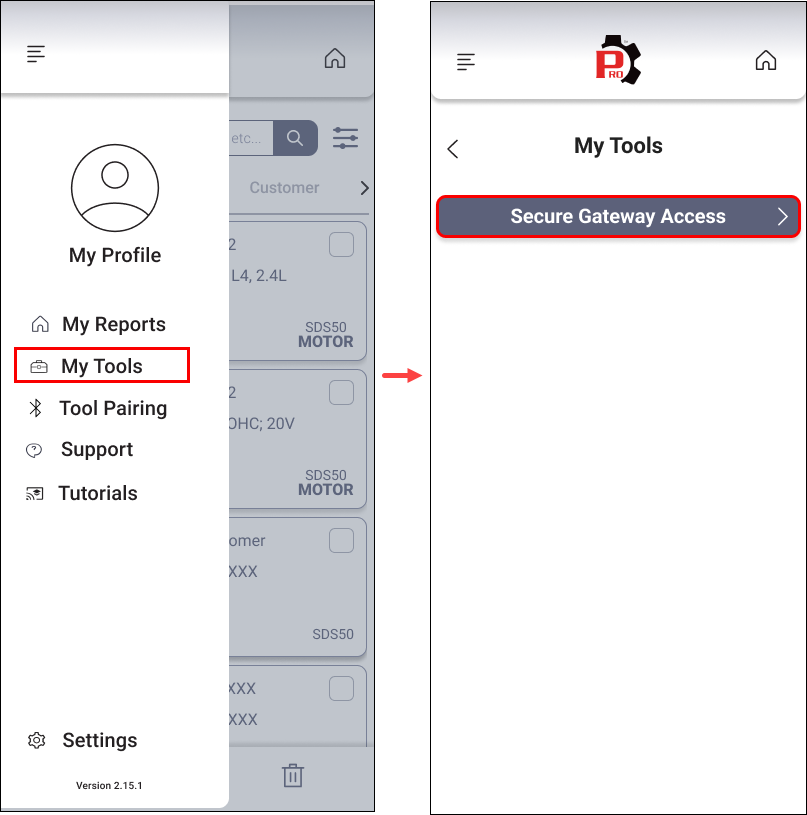

Step 1: In the RSPRO® App, tap the My Tools. Then tap the Secure Gateway Access button.

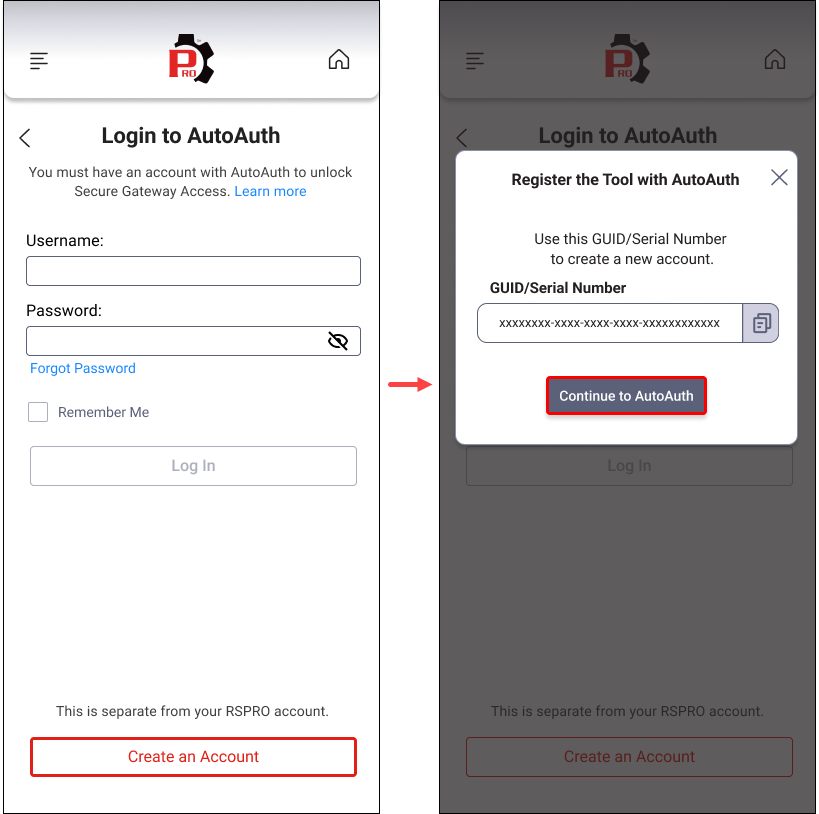

Step 2: Tap the Create an Account button. Then copy the GUID/Serial Number and tap the Continue to AutoAuth button or visit https://webapp.autoauth.com/ in your browser.

Note: If you already have an AutoAuth account, proceed to Step 7.

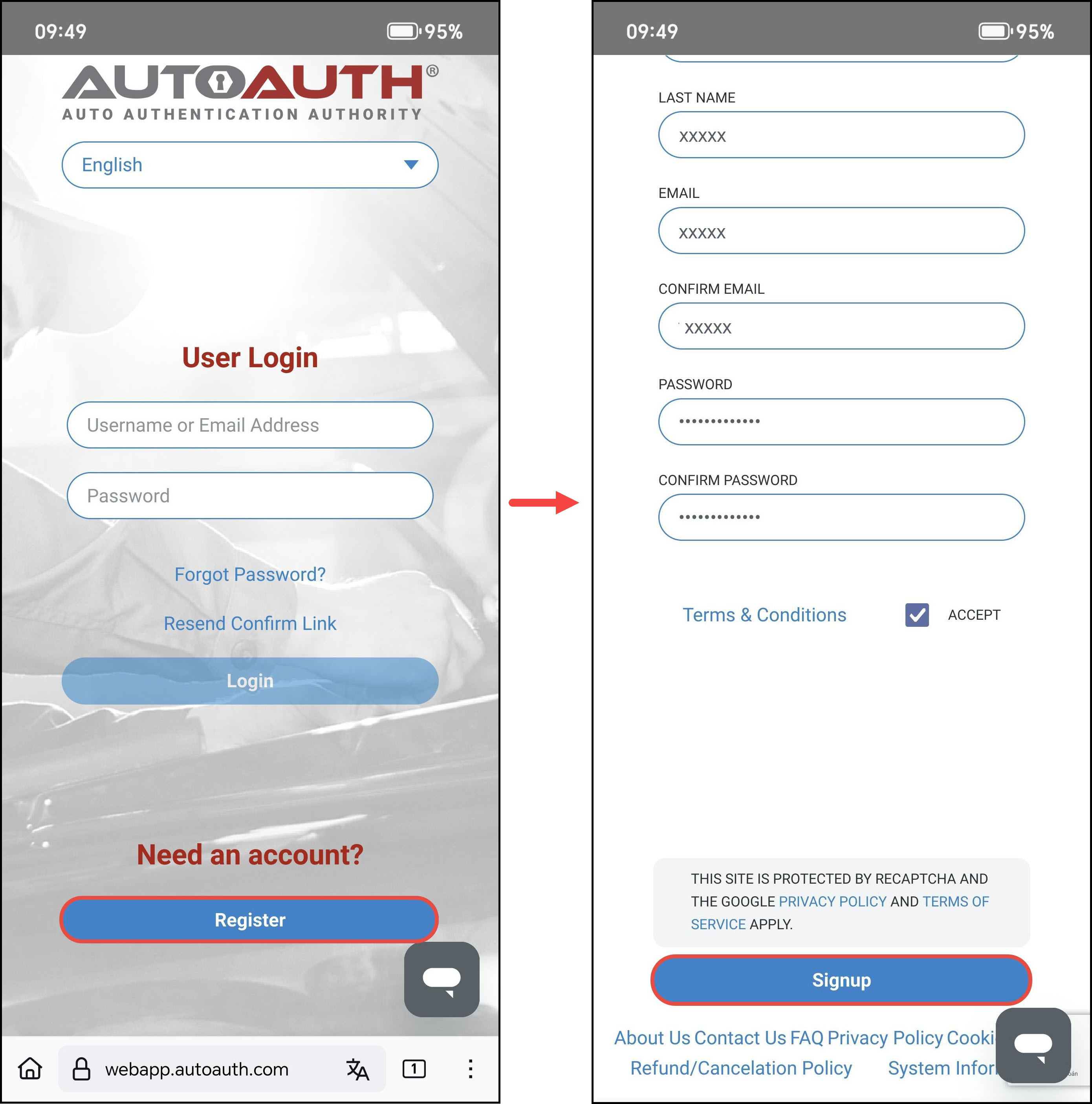

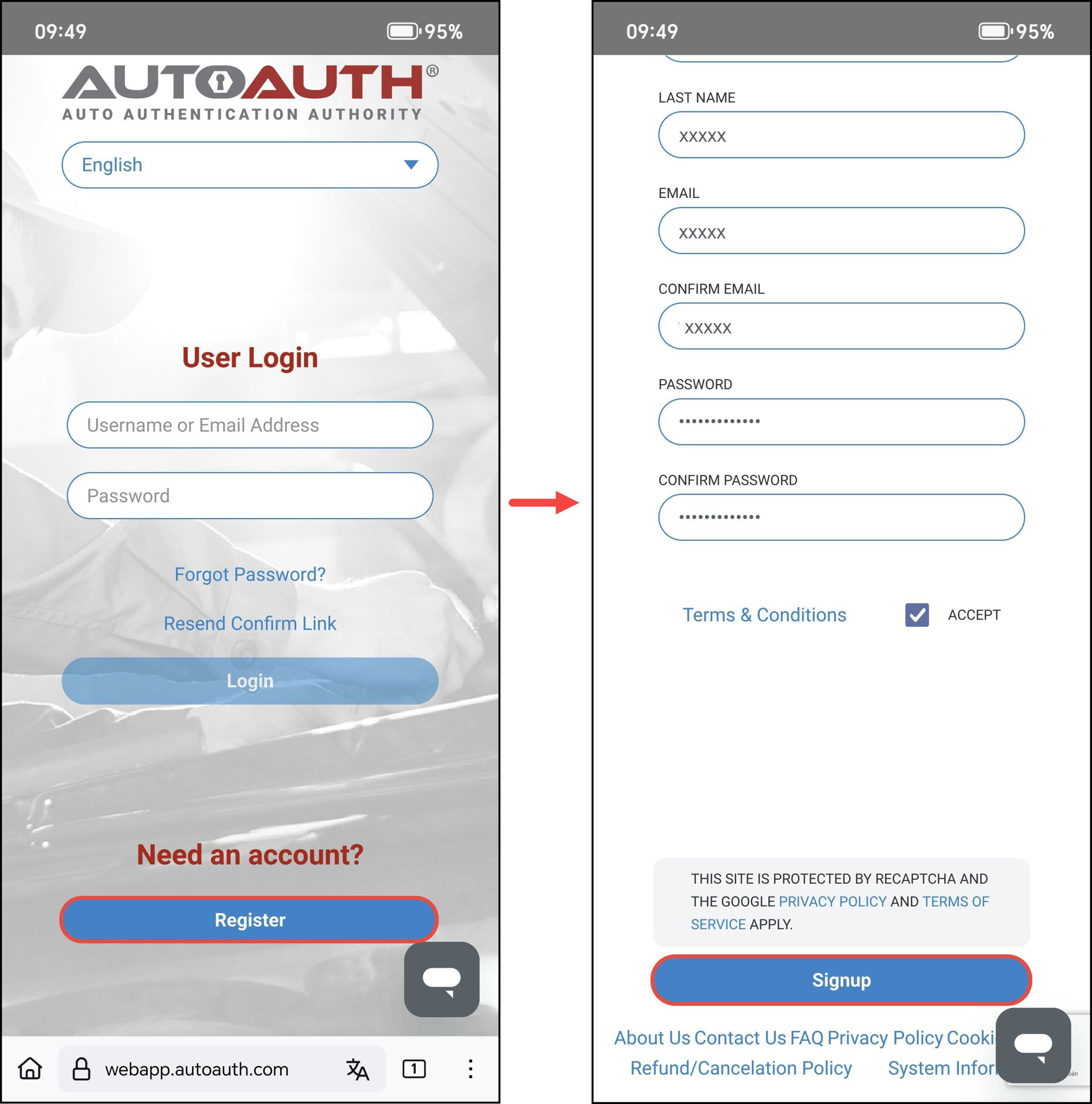

Step 3: Tap the Register button to create an account. Then, enter all required personal information and tap the Signup button.

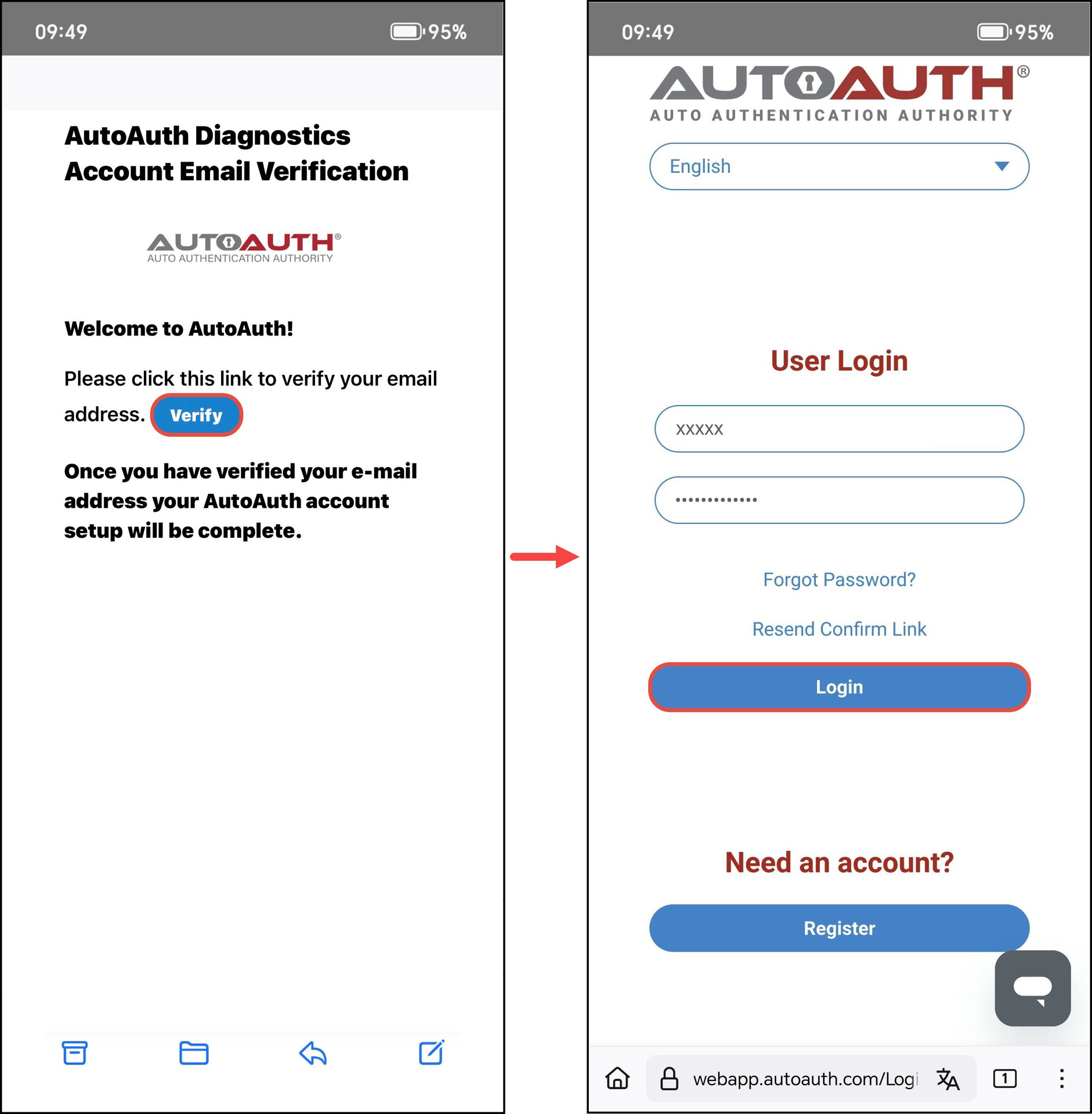

Step 4: After creating the account, verify it through the confirmation email sent to your inbox. Then, log in to the AutoAuth portal using your created account.

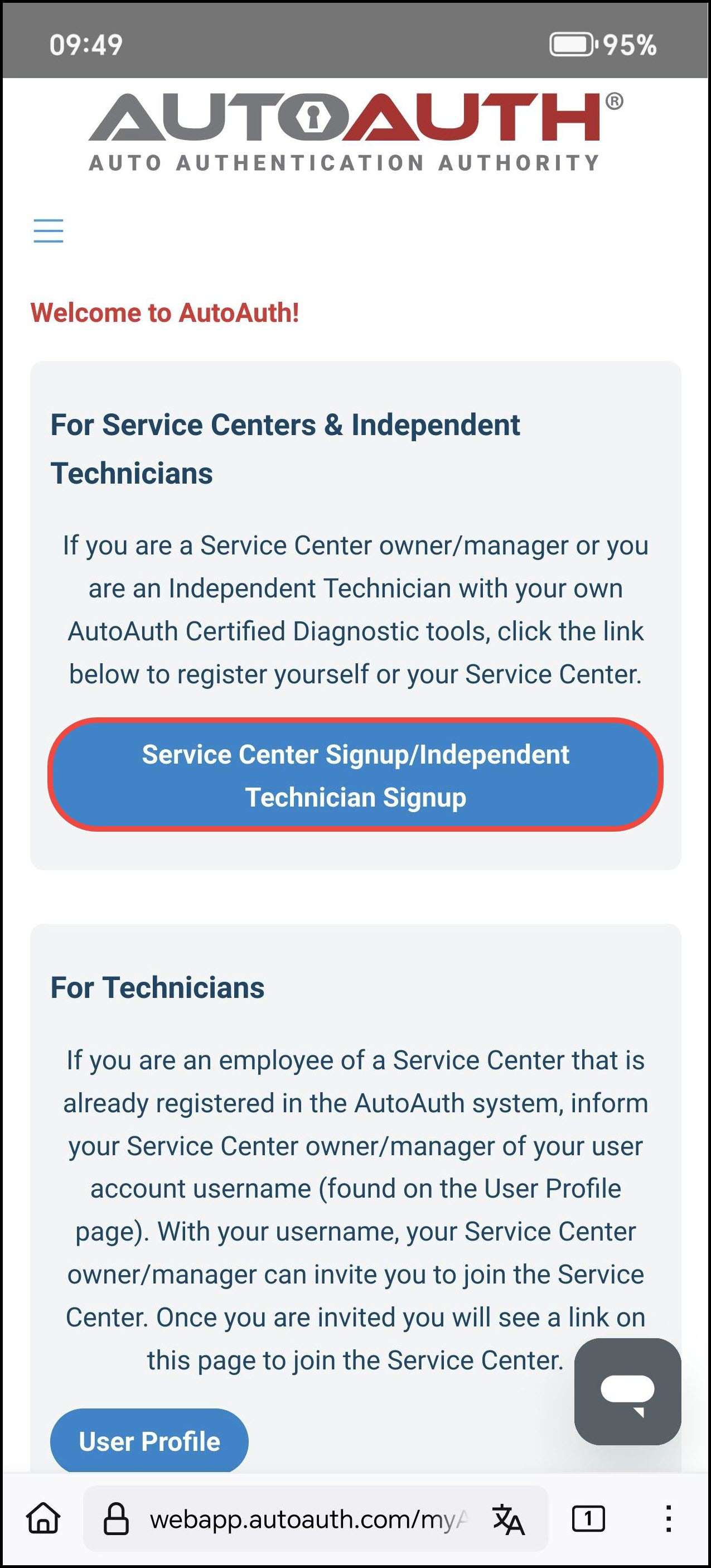

Step 5: Tap the Service Center Signup/Independent Technician Signup button in the For Service Centers & Independent Technicians plan.

Note: If you tap the User Profile button in the For Technicians plan, you will get your username, and with this username, your Service Center owner or manager needs to invite you to join the Service Center. Once invited, you will see a link on this page to join the Service Center.

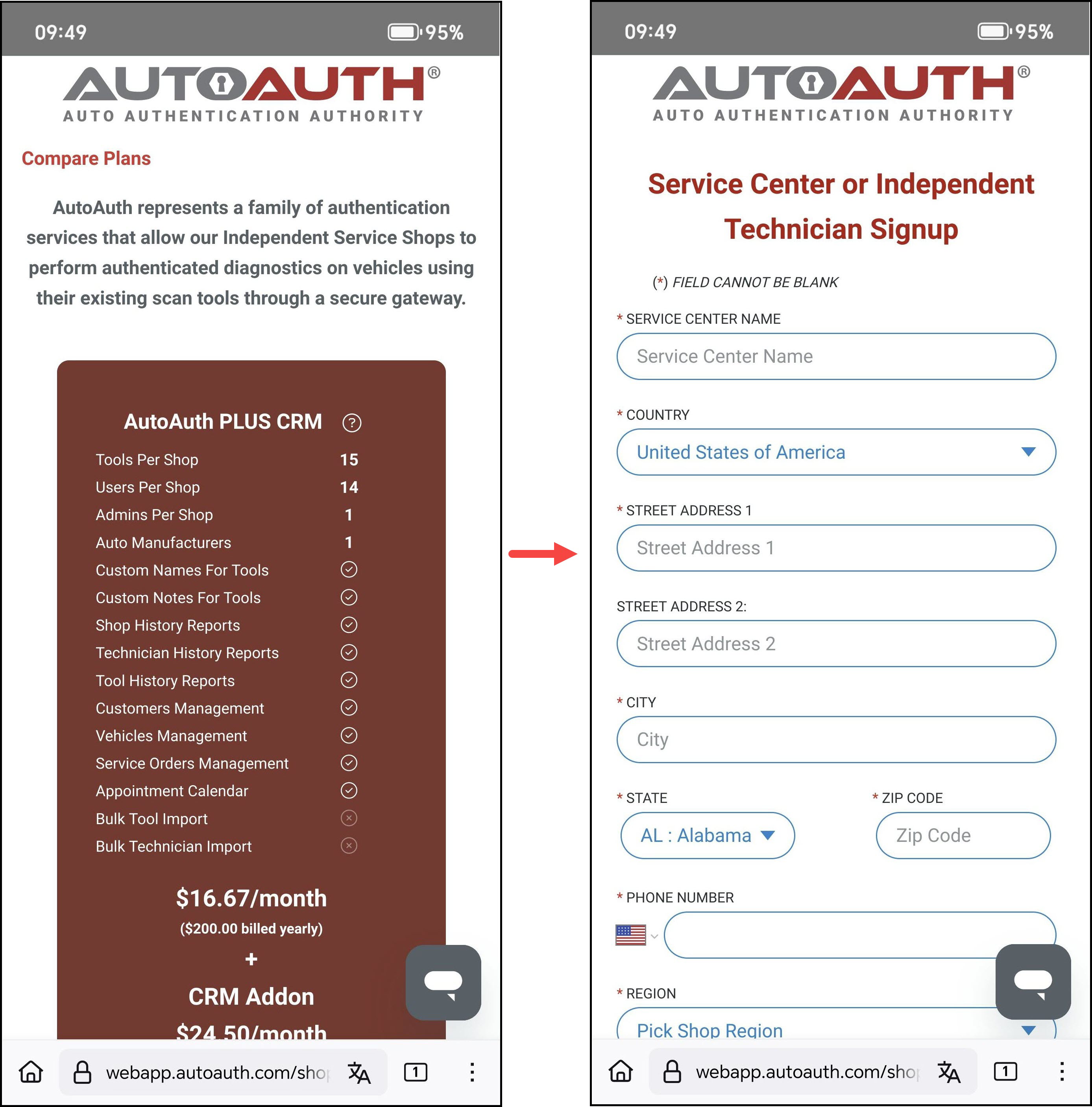

Step 6: AutoAuth requires an annual fee to maintain the service. Complete the required information and payment before using your account.

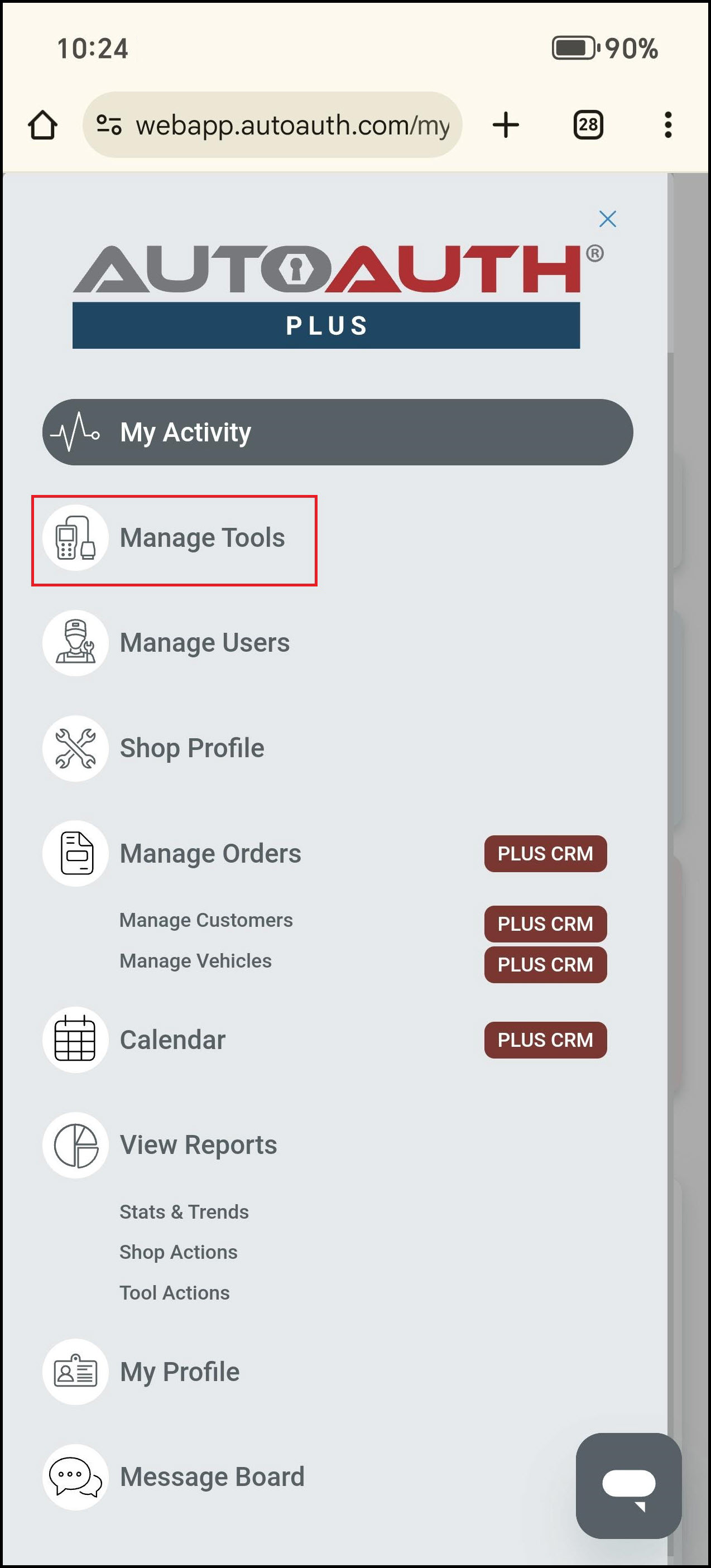

Step 7: Log in to the AutoAuth portal using your account. Then tap the Hamburger button in the upper left corner and tap Manage Tools.

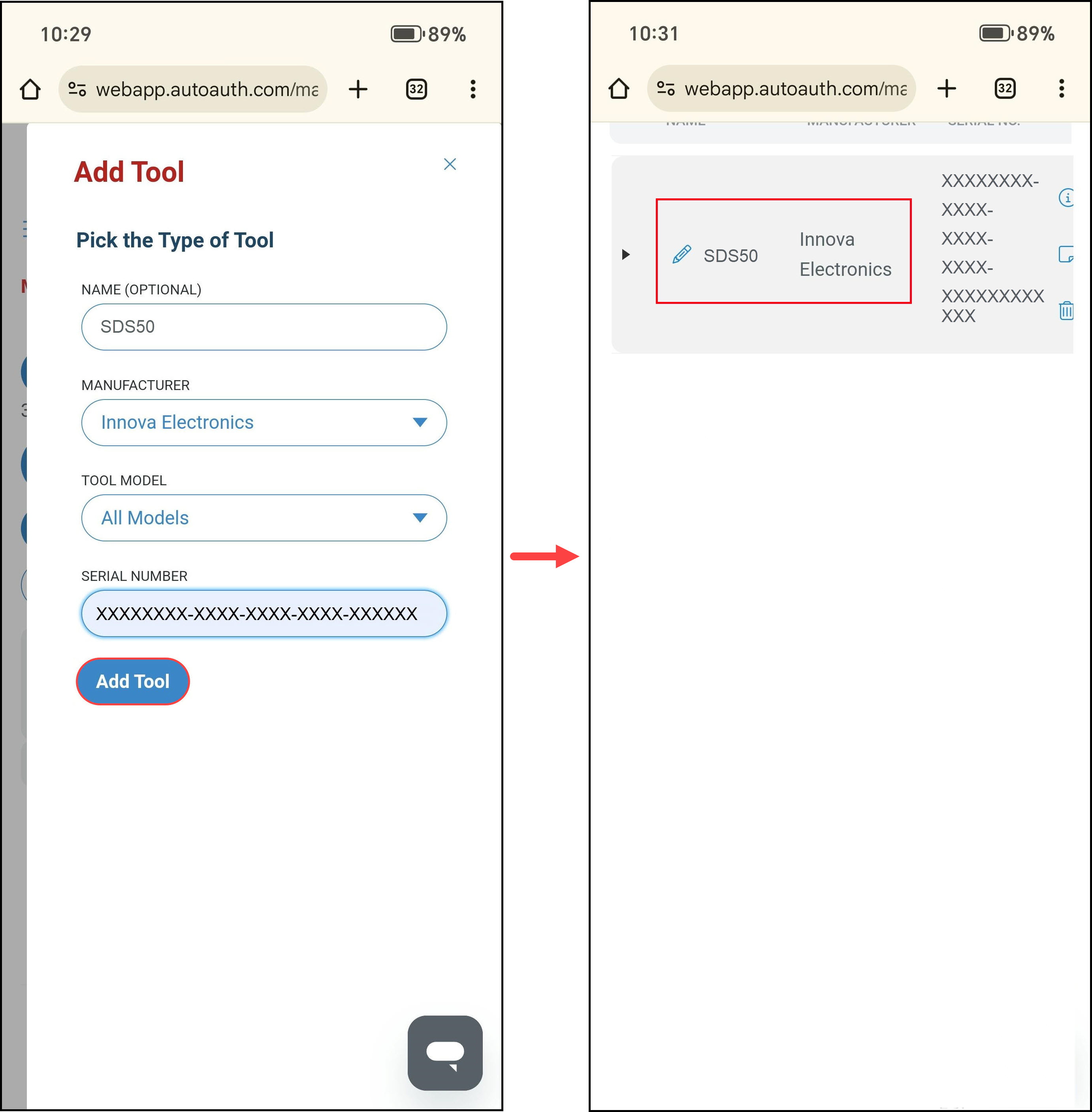

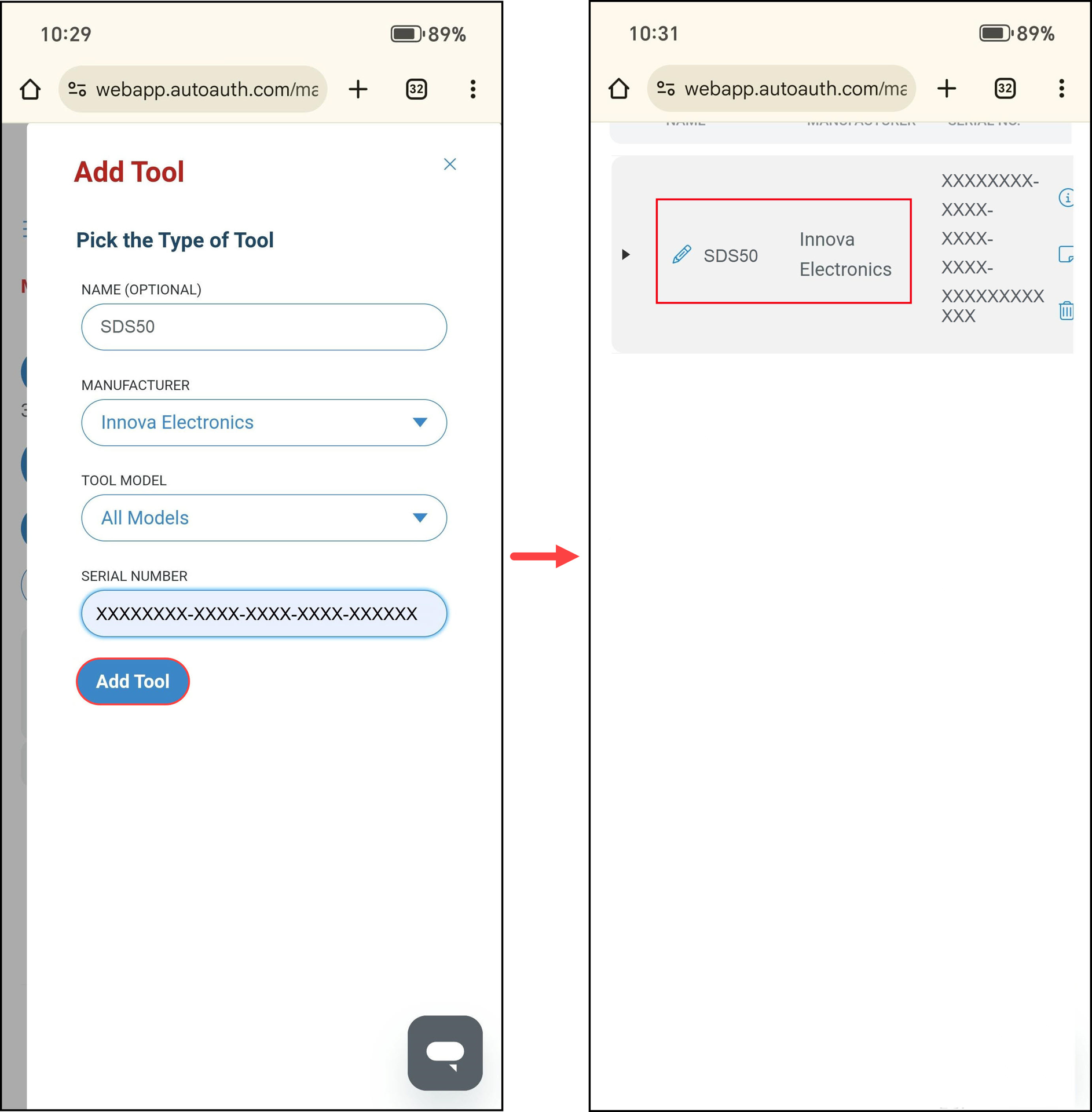

Step 8: Enter your tool's information:

  • Name: Input your tool’s name.

  • Manufacturer: Select Innova Electronics

  • Tool model: Select All Models

  • Serial number: Paste the GUID/Serial Number you copied earlier, or find it in the Version Information section under Settings in Section A.

Then tap the Add Tool button. Your tool will appear in the registered list, and you can now come back to the RSPRO® App and unlock SGW.

B. Unlock Secure Gateway

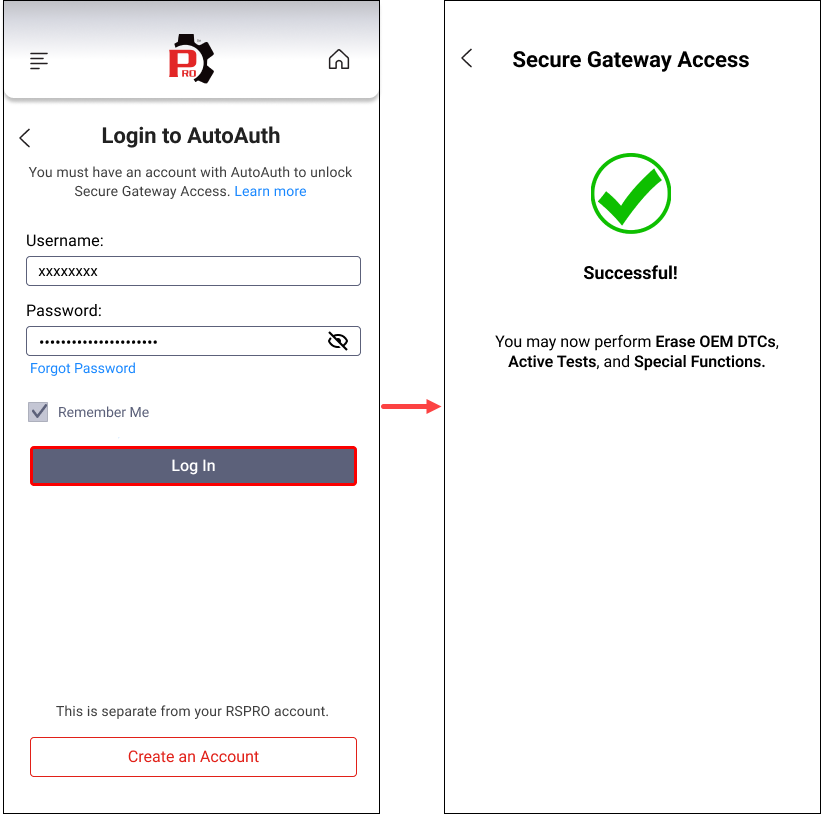

Step 1: Return to the AutoAuth login screen, enter your account details, and tap the Log In button.

Step 2: Wait for the SGW to unlock. Once successfully unlocked, continue using the Innova SDS50 to perform the desired function.

Reference Video

This article applies to Firmware version 23.02.01 and App version 02.15.01
