Description: The purpose of this guide is to explain how to use the Innova 7111 Tablet to view the Transmission Fluid Temperature. This temperature is essential to monitor because it helps identify potential issues in your vehicle’s transmission system. By understanding and tracking the temperature, you can maintain your transmission’s health and ensure your vehicle runs smoothly.

Procedure:

Step 1: Connect Innova 7111 Tablet to Your Vehicle and Select “Workshop Tools”

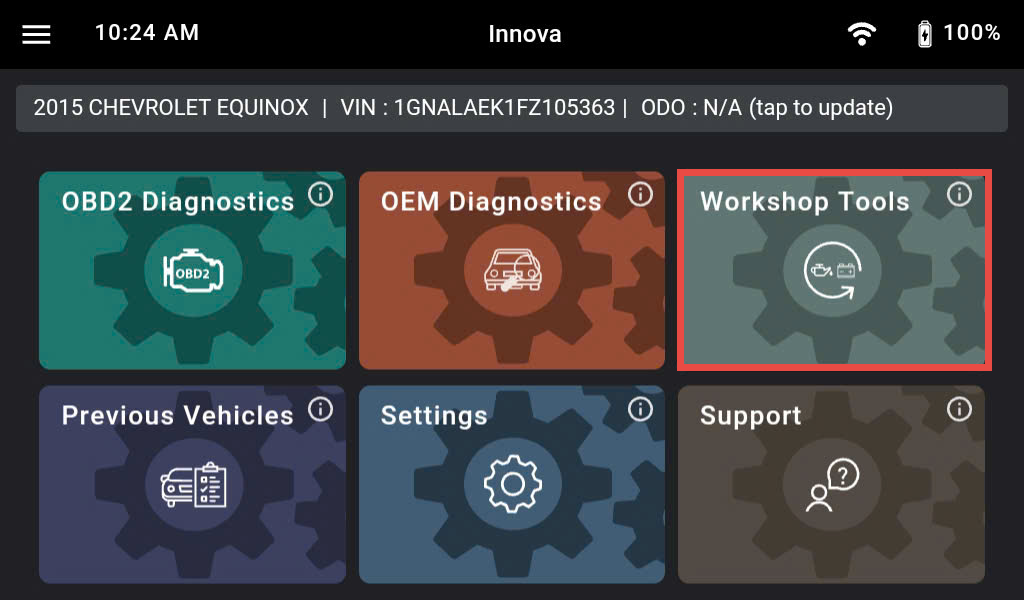

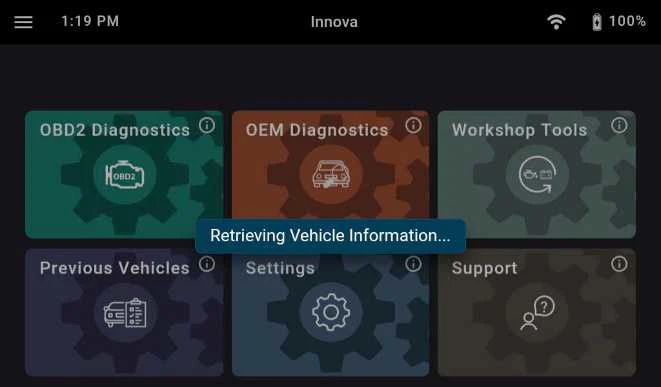

Plug the Innova 7111 Tablet into your vehicle using the Diagnostic Link Connector (DLC). This collects important details like your Vehicle Identification Number (VIN) and model. Once connected, choose the “Workshop Tools” function.

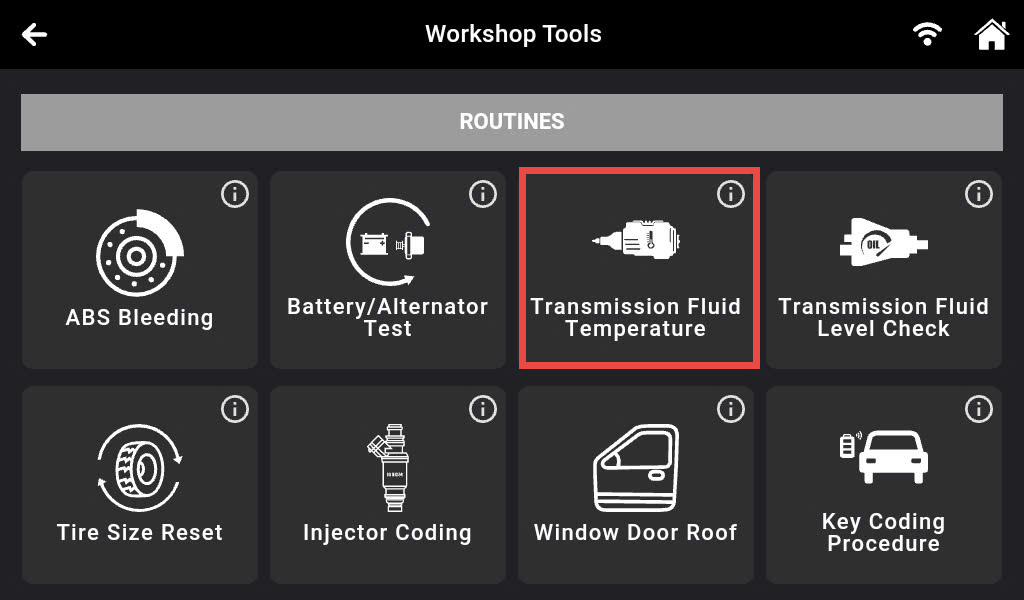

Step 2: Select the “Transmission Fluid Temperature” Function

Find and tap the button labeled “Transmission Fluid Temperature” on the tablet screen. This function lets you see the temperature of your transmission fluid in real-time, like a thermometer.

Step 3: View Transmission Fluid Temperature Information

Step 4: Record the Temperature

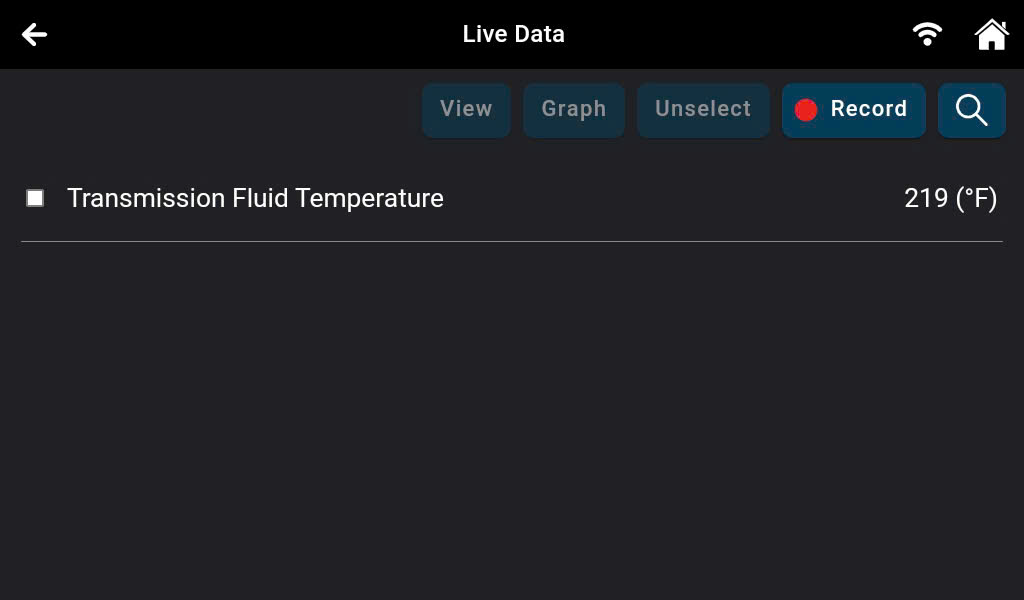

	If you want to track the temperature over time, you can record it. Tap the “Record” button on the tablet screen. This starts recording the temperature value.

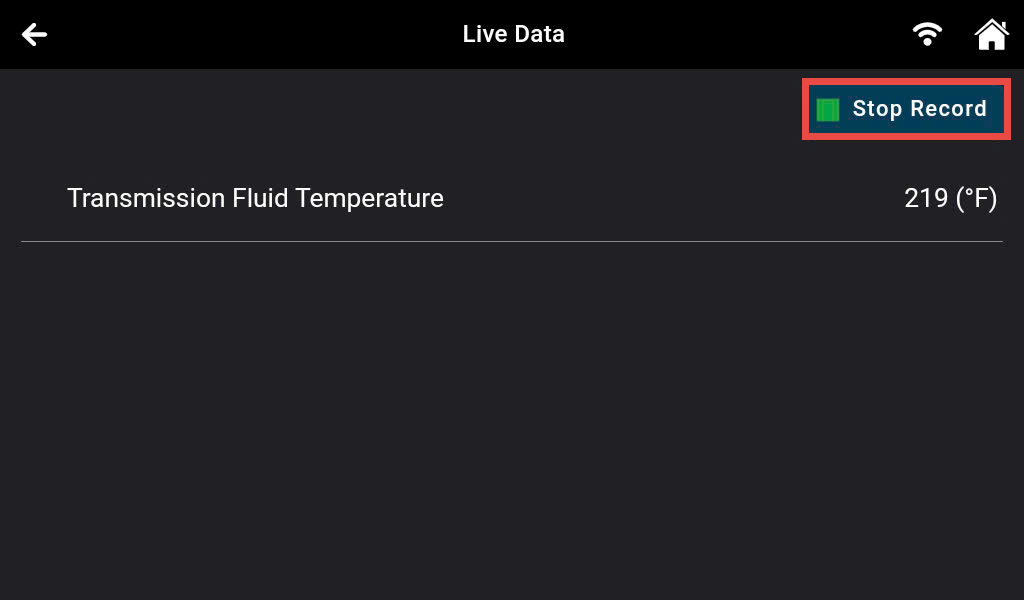

	3. When you’re done recording, tap “Stop Record”.

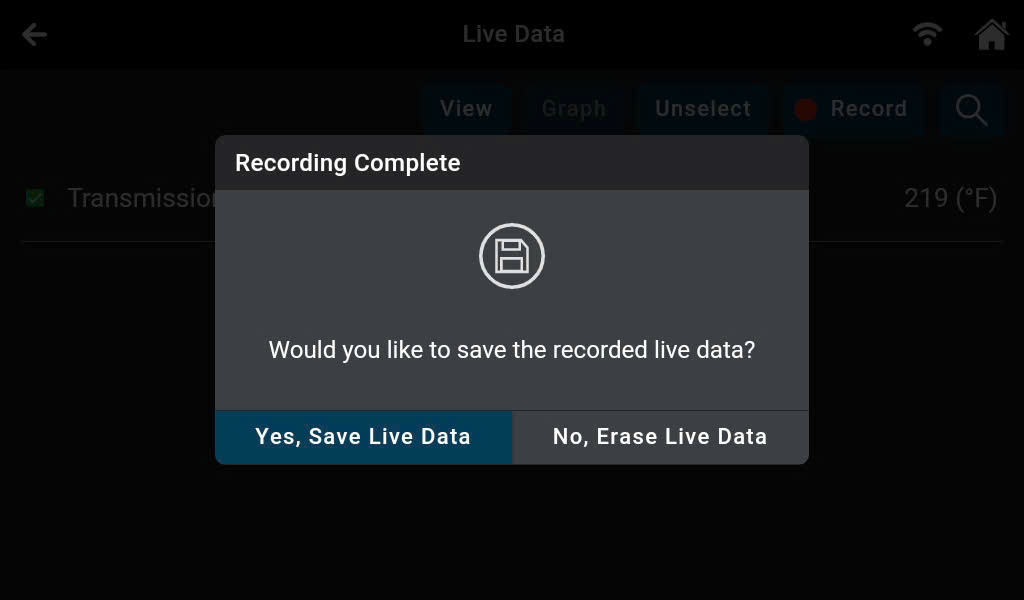

	4. If you want to save the recorded data, tap “Yes, Save Live Data”. If not, tap “No, Erase Live Data”.

Step 5: Playback Recorded Data

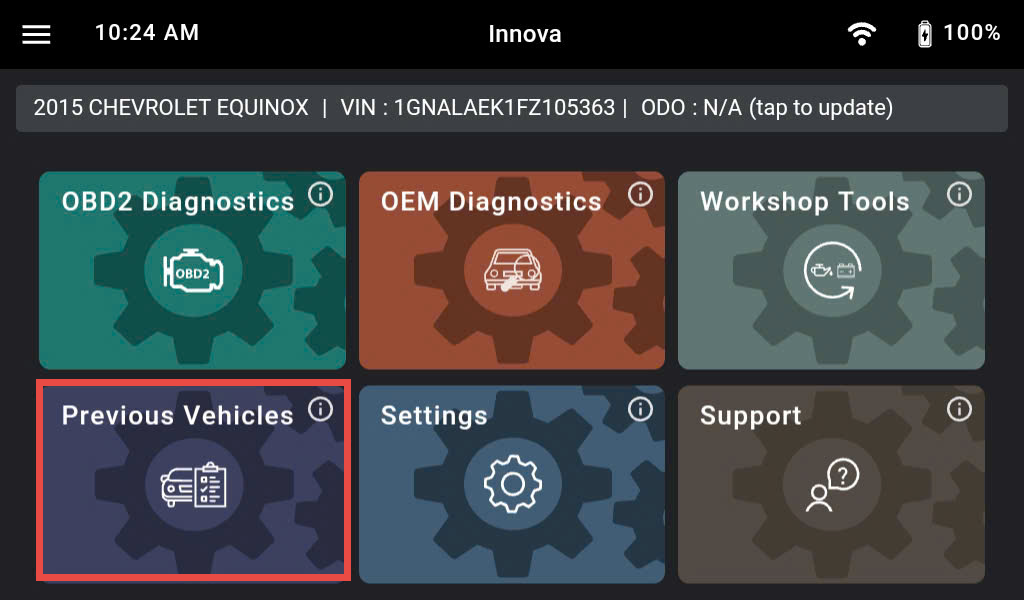

	If you’ve recorded temperature data and want to review it later: 1. Go to the “Previous Vehicles” section on the tablet.

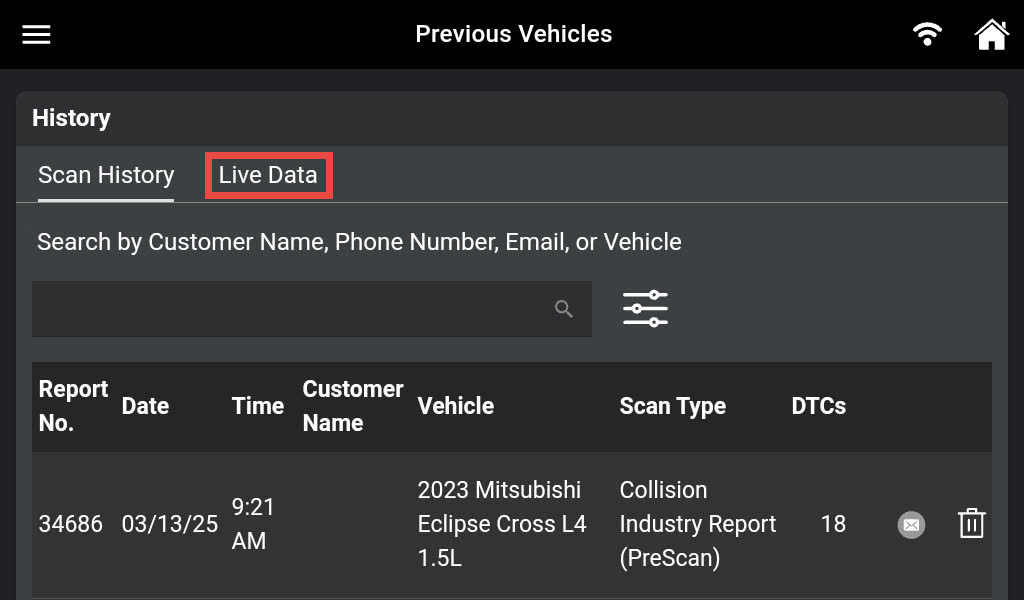

	2. Find and tap the “Live Data” button.

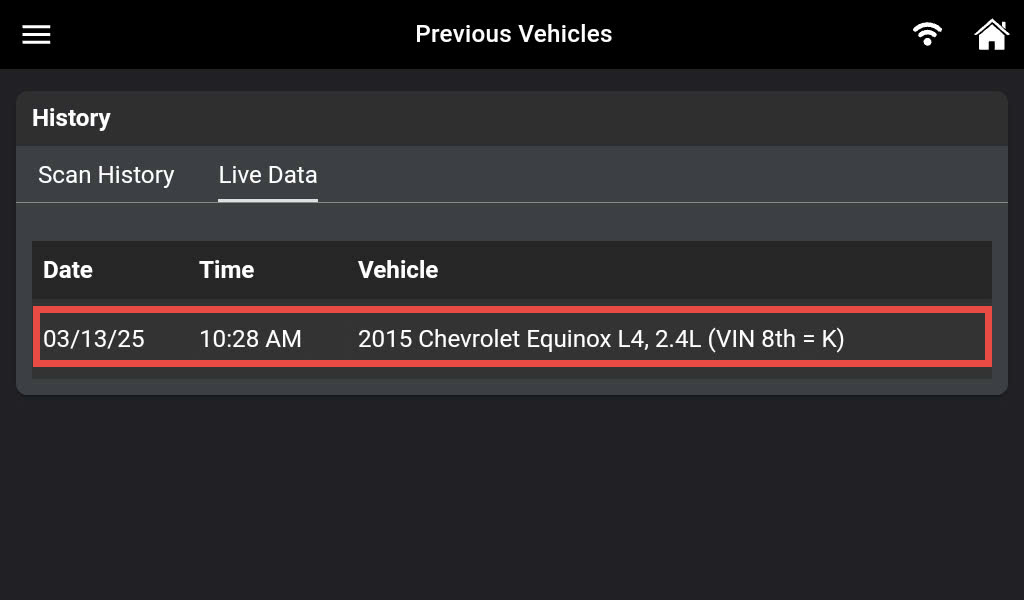

	3. Select the recorded data you wish to review based on date, time, and vehicle information.

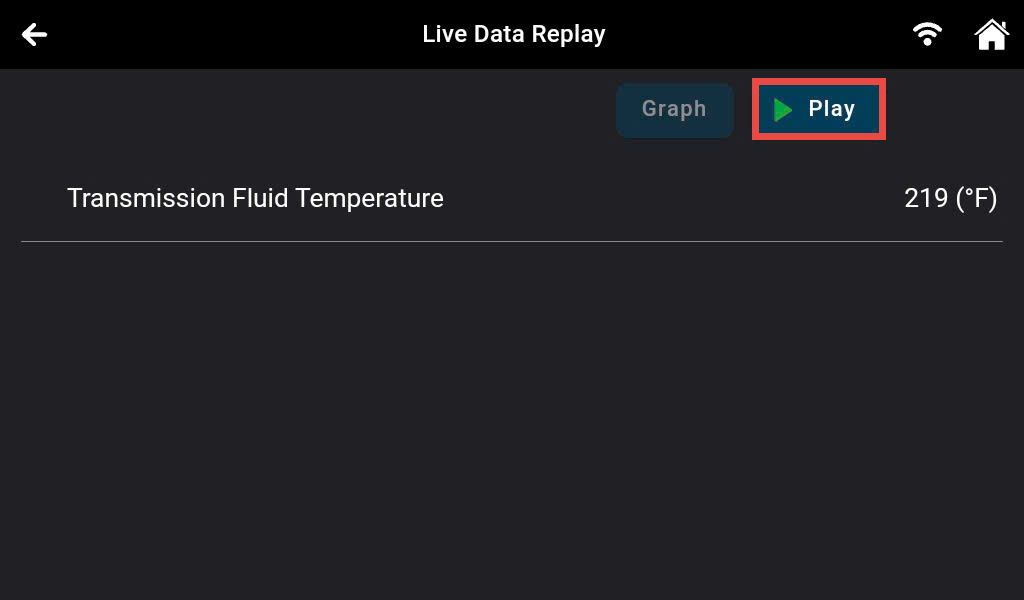

	4. Tap “Play” to begin reviewing the recorded data.

Key Tips:

- When reviewing recorded Transmission Fluid Temperature Data, pay attention to values. If they’re outside a specific range or seem unusual, you might need extra troubleshooting and repairs.

- Ideally, transmission fluid should stay between 160°F to 200°F (71°C to 93°C). Going beyond this range could lead to problems like hardened seals, slipping plates, and burnt-out seals and clutches.

- These issues could eventually result in transmission failure, making it crucial to monitor the temperature closely.

Summary: In conclusion, maintaining the correct transmission fluid temperature is vital for the performance and longevity of your vehicle’s transmission system. The Transmission Fluid Temperature function helps monitor and manage this critical aspect, ensuring that your transmission operates efficiently. Following this guide will help you maintain optimal transmission performance and enhance your vehicle's reliability on the road.

If you encounter any questions or require further assistance, don’t hesitate to reach out to our support team. Your efficient and accurate diagnostics experience is our priority!
